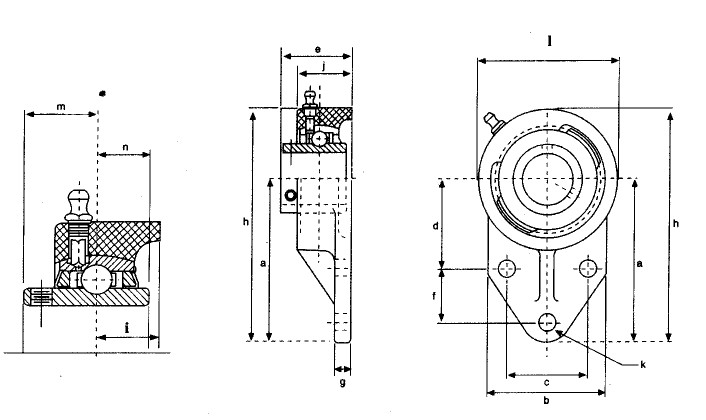

UCFBPL200

ÐͺÅ
Type		 Bore Dia ¡¡ Dimensions(mm) ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ Öá³Ð×ù
Housing
Weight
No.		 ÂÝ˨
Bull.fiss
Bolt Size
 ÐͺÅ
Type
d a b c d e f g h i j k l m n
in mm
UCFBPL201 1/2 12 76.2 62 38.1 42.9 33.7 22.2 11.4 108 15.4 26.5 10.7 63.5 18.3 12.7 0.1 M10 UCFBPL201
UCFBPL202

9/16

5/8

 15 76.2 62 38.1 42.9 33.7 22.2 11.4 108 15.4 26.5 10.7 63.5 18.3 12.7 0.1 M10 UCFBPL202
UCFBPL203 11/16 17 76.2 62 38.1 42.9 33.7 22.2 11.4 108 15.4 26.5 10.7 63.5 18.3 12.7 0.1 M10 UCFBPL203
UCFBPL204 3/4 20 76.2 62 38.1 42.9 33.7 22.2 11.4 108 15.4 26.5 10.7 63.5 18.3 12.7 0.1 M10 UCFBPL204
UCFBPL205

13/16

7/8

15/16

1

 25 85.7 63.5 41.3 46 40.7 28.6 11.4 120.6 21.0 34 10.7 70 19.7 14.3 0.12 M10 UCFBPL205
UCFBPL206

1-1/16

1-1/8

1-3/16

1-1/4

 30 95 76 47.6 52.4 41.2 31.8 13.3 138.5 19.0 32 10.7 83 22.2 15.9 0.16 M10 UCFBPL206
UCFBPL207

1-1/4

1-5/16

1-3/8

1-7/16

 35 108 89 50.8 60.3 46.8 31.8 16.1 157 21.4 36.5 13.1 95 25.4 17.5 0.18 M12 UCFBPL207
