UCPAPL200

ÐͺÅ
Type		 Bore Dia Dimensions(mm) Öá³Ð×ù
Housing
Weight
No.		 ÂÝ˨
Bull.fiss
Bolt Size
 ÐͺÅ
Type

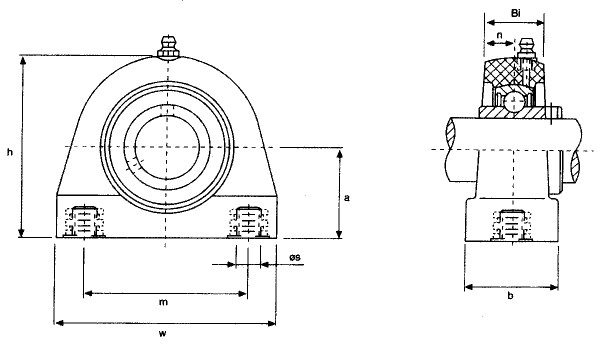

d a b h m w Bi n
in mm
UCPAPL201 1/2 12 33.3 34.5 66 50.8 72.8 31 12.7 0.13 M8 UCPAPL201
UCPAPL202 9/16 5/8 15 33.3 34.5 66 50.8 72.8 31 12.7 0.13 M8 UCPAPL202
UCPAPL203 11/16 17 33.3 34.5 66 50.8 72.8 31 12.7 0.13 M8 UCPAPL203
UCPAPL204 3/4 20 33.3 34.5 66 50.8 72.8 31 12.7 0.13 M8 UCPAPL204
UCPAPL205 13/16 7/8 15/16 1 25 36.5 39.5 73.5 50.8 76.2 31 14.3 0.15 M10 UCPAPL205
UCPAPL206 1-1/16 1-1/8 1-3/16 1-1/4 30 42.9 42.5 84 76.2 101 34 15.9 0.24 M10 UCPAPL206
UCPAPL207 1-1/4 1-5/16 1-3/8 1-7/16 35 47.6 47.5 95 82.6 110 38.1 17.5 0.28 M10 UCPAPL207
UCPAPL208 1-1/2 1-9/16 40 49.2 48 100.5 88.9 120 42.9 19.0 0.39 M12 UCPAPL208
UCPAPL209 1-5/8 1-11/16 1-3/4 45 54 54 107 95.3 124 49.2 19.0 0.47 M12 UCPAPL209
UCPAPL210 1-13/16 1-7/8 1-15/16 2 50 57.2 54 115 101.6 135 51.6 19.0 0.56 M16 UCPAPL210
