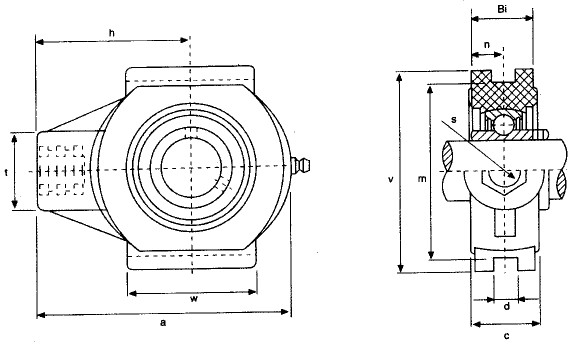

UCTPL200

ÐͺÅ
Type		 Bore Dia Dimensions(mm) Öá³Ð×ù
Housing
Weight
No.		 ÂÝ˨
Bull.fiss
Bolt Size
 ÐͺÅ
Type
d a e d h m t v w Bi n
in mm
UCTPL201 1/2 12 99 27.5 12 64 76 35 88 47 31 12.7 0.16 M16 UCTPL201
UCTPL202 9/16 5/8 15 99 27.5 12 64 76 35 88 47 31 12.7 0.16 M16 UCTPL202
UCTPL203 11/16 17 99 27.5 12 64 76 35 88 47 31 12.7 0.16 M16 UCTPL203
UCTPL204 3/4 20 99 27.5 12 64 76 35 88 47 31 12.7 0.16 M16 UCTPL204
UCTPL205 13/16 7/8 15/16 1 25 99 27.5 12 64 76 35 88 47 31 14.3 0.17 M16 UCTPL205
UCTPL206 1-1/16 1-1/8 1-3/16 1-1/4 30 125 34.5 12 76 89 40 102 63 34 15.9 0.22 M16 UCTPL206
UCTPL207 1-1/4 1-5/16 1-3/8 1-7/16 35 125 34.5 12 76 89 40 102 63 38.1 17.5 0.26 M16 UCTPL207
UCTPL208 1-1/2 1-9/16 40 140 38.5 16 85 102 46 114 80 42.9 19.0 0.38 M16 UCTPL208
UCTPL209 1-5/8 1-11/16 1-3/4 45 149 40 16 90 102 50 117 85 49.2 19.0 0.48 M20 UCTPL209
UCTPL210 1-13/16 1-7/8 1-15/16 2 50 149 40 16 90 102 50 117 85 51.6 19.0 0.52 M20 UCTPL210
