UCFLPL200

ÐͺÅ

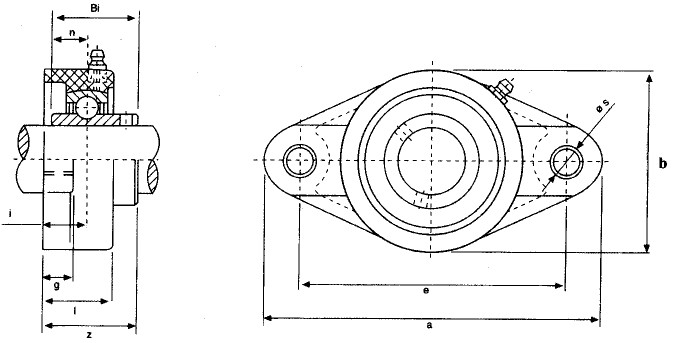

Type		 Bore Dia Dimensions(mm) Öá³Ð×ù
Housing
Weight
No.		 ÂÝ˨
Bull.fiss
Bolt Size
 ÐͺÅ
Type
d a e b g I s z i Bi n
in mm
UCFLPL201 1/2 12 113 90 64 11.4 26.5 11 33.7 15.4 31 12.7 0.08 M10 UCFLPL201
UCFLPL202 9/16 5/8 15 113 90 64 11.4 26.5 11 33.7 15.4 31 12.7 0.08 M10 UCFLPL202
UCFLPL203 11/16 17 113 90 64 11.4 26.5 11 33.7 15.4 31 12.7 0.08 M10 UCFLPL203
UCFLPL204 3/4 20 113 90 64 11.4 26.5 11 33.7 15.4 31 12.7 0.08 M10 UCFLPL204
UCFLPL205 13/16 7/8 15/16 1 25 131 99 69.5 13.5 29.1 11 36.7 17 31 14.3 0.10 M10 UCFLPL205
UCFLPL206 1-1/16 1-1/8 1-3/16 1-1/4 30 148 117 80 13.3 30.5 11 41.2 19 34 15.9 0.13 M12 UCFLPL206
UCFLPL207 1-1/4 1-5/16 1-3/8 1-7/16 35 164 130 90 16.1 32.8 13 43.4 18 38.1 17.5 0.16 M12 UCFLPL207
UCFLPL208 1-1/2 1-9/16 40 176 144 100 20 37.5 14 51.7 21.5 42.9 19.0 0.24 M12 UCFLPL208
UCFLPL209 1-5/8 1-11/16 1-3/4 45 188 148 108 21 41 17 54.2 24 49.2 19.0 0.32 M16 UCFLPL209
UCFLPL210 1-13/16 1-7/8 1-15/16 2 50 197 157 115 21 43 17 57.6 25 51.6 19.0 0.42 M16 UCFLPL210
