UCPPL200

ÐͺÅ
Type		 Bore Dia Dimensions(mm) Öá³Ð×ù
Housing
Weight
No.		 ÂÝ˨
Bull.fiss
Bolt Size
 ÐͺÅ
Type

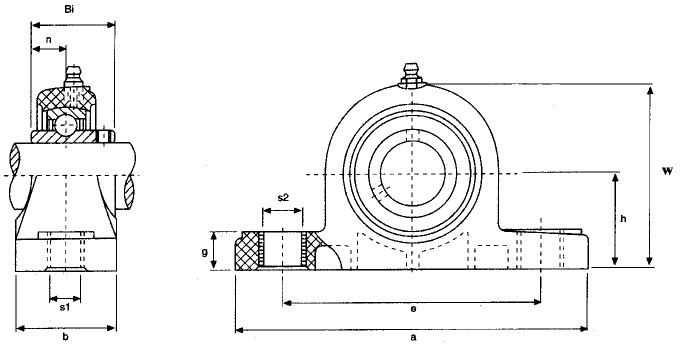

d h a e b S1 S2 g w Bi n
in mm
UCPPL201 1/2 12 127 33.3 95 38 11 14 14.2 65 31 12.7 0.12 M10 UCPPL201
UCPPL202 9/16 5/8 15 127 33.3 95 38 11 14 14.2 65 31 12.7 0.12 M10 UCPPL202
UCPPL203 11/16 17 127 33.3 95 38 11 14 14.2 65 31 12.7 0.12 M10 UCPPL203
UCPPL204 3/4 20 127 33.3 95 38 11 14 14.2 65.5 31 12.7 0.12 M10 UCPPL204
UCPPL205 13/16 7/8 15/16 1 25 140.5 36.5 105 38 11 14 14.5 71 34 14.3 0.14 M10 UCPPL205
UCPPL206 1-1/16 1-1/8 1-3/16 1-1/4 30 163 42.9 119 46 14 18 17.8 84 38.1 15.9 0.20 M12 UCPPL206
UCPPL207 1-1/4 1-5/16 1-3/8 1-7/16 35 168 47.6 127 48 14 18 18 94.5 42.9 17.5 0.25 M12 UCPPL207
UCPPL208 1-1/2 1-9/16 40 184 49.2 137 54 14 18 19.523 99 49.2 19.0 0.35 M12 UCPPL208
UCPPL209 1-5/8 1-11/16 1-3/4 45 192 54 146 54 17 20 23 106 49.2 19.0 0.45 M16 UCPPL209
UCPPL210 1-13/16 1-7/8 1-15/16 2 50 206 57.2 159 60 17 20 112 114 51.6 19.0 0.55 M16 UCPPL210
