产品展示
|

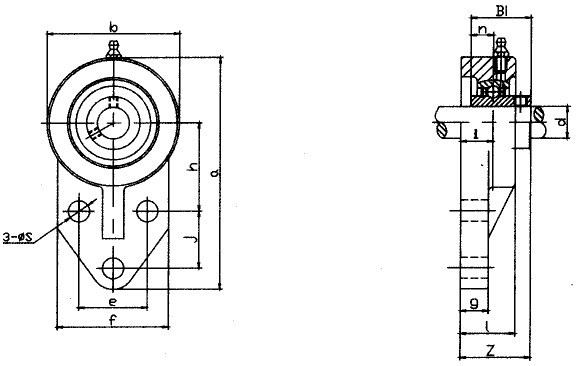

不锈钢带座外球面轴承SUCFB200
带座轴承型号
Bearing Unit
No. |
轴径
Bore Dia |
外形尺寸（毫米）
Dimensions(mm) |
轴承
Bearing
No. |
轴承座
Housing
No. |
重量
Weight
(kg) |
带座轴承型号
Bearing Unit
No. |
| d |
a |
h |
e |
j |
i |
g |
I |
s |
b |
f |
z |
n |
Bi |
| in |
mm |
| SUCFB201 |
|
12 |
108 |
43.3 |
38.1 |
22 |
15.9 |
8 |
25.4 |
10 |
63.5 |
60.3 |
34.1 |
12.7 |
31 |
SUC201 |
SFB203 |
0.71 |
SUCFB201 |
| SUCFB201-8 |
1/2 |
|
SUC201-8 |
SUCFB201-8 |
| SUCFB202 |
|
15 |
SUC202 |
SUCFB202 |
| SUCFB202-9 |
9/16 |
|
SUC202-9 |
|
| SUCFB202-10 |
5/8 |
|
SUC202-10 |
SUCFB202-10 |
| SUCFB203 |
|
17 |
SUC203 |
SUCFB203 |
| SUCFB203-11 |
11/16 |
|
SUC203-11 |
SUCFB203-11 |
| SUCFB204 |
|
20 |
108 |
43.3 |
38.1 |
22 |
15.9 |
8 |
25.4 |
10 |
63.5 |
60.3 |
34.1 |
12.7 |
31 |
SUC204 |
SFB204 |
0.69 |
SUCFB204 |
| SUCFB204-12 |
3/4 |
|
SUC204-12 |
SUCFB204-12 |
| SUCFB205 |
|
25 |
121 |
46 |
41.3 |
28.5 |
16.7 |
9.5 |
28.5 |
10 |
70 |
63.5 |
36.5 |
14.3 |
34 |
SUC205 |
SFB205 |
0.87 |
SUCFB205 |
| SUCFB205-13 |
13/16 |
|
SUC205-13 |
|
| SUCFB205-14 |
7/8 |
|
SUC205-14 |
SUCFB205-14 |
| SUCFB205-15 |
15/16 |
|
SUC205-15 |
SUCFB205-15 |
| SUCFB205-16 |
1 |
|
SUC205-16 |
SUCFB205-16 |
| SUCFB206 |
|
30 |
137 |
52.4 |
47.6 |
31.7 |
18.6 |
9.5 |
32 |
10 |
83 |
70 |
40.9 |
15.9 |
38.1 |
SUC206 |
SFB206 |
1.11 |
SUCFB206 |
| SUCFB206-17 |
1-1/16 |
|
SUC206-17 |
SUCFB206-17 |
| SUCFB206-18 |
1-1/8 |
|
SUC206-18 |
SUCFB206-18 |
| SUCFB206-19 |
1-3/16 |
|
SUC206-19 |
SUCFB206-19 |
| SUCFB206-20 |
1-1/4 |
|
SUC206-20 |
SUCFB206-20 |
| SUCFB207 |
|
35 |
156 |
60.3 |
50.8 |
31.7 |
21 |
12.7 |
36.5 |
13 |
95 |
83 |
46.4 |
17.5 |
42.9 |
SUC207 |
SFB207 |
1.27 |
SUCFB207 |
| SUCFB207-20 |
1-1/4 |
|
SUC207-20 |
SUCFB207-20 |
| SUCFB207-21 |
1-5/16 |
|
SUC207-21 |
SUCFB207-21 |
| SUCFB207-22 |
1-3/8 |
|
SUC207-22 |
SUCFB207-22 |
| SUCFB207-23 |
1-7/16 |
|
SUC207-23 |
SUCFB207-23 |
| SUCFB208 |
|
40 |
164 |
60.3 |
50 |
41.3 |
21 |
15.9 |
35.7 |
12 |
100 |
78 |
51.2 |
19.0 |
49.2 |
SUC208 |
SFB208 |
1.54 |
SUCFB208 |
| SUCFB208-24 |
1-1/2 |
|
SUC208-24 |
SUCFB208-24 |
| SUCFB208-25 |
1-9/16 |
|
SUC208-25 |
SUCFB208-25 |
| SUCFB209 |
|
45 |
174 |
65 |
54 |
42.9 |
21.8 |
18.3 |
38 |
12 |
106 |
80 |
51.2 |
19.0 |
49.2 |
SUC209 |
SFB209 |
2.36 |
SUCFB209 |
| SUCFB209-26 |
1-5/8 |
|
SUC209-26 |
SUCFB209-26 |
| SUCFB209-27 |
1-11/16 |
|
SUC209-27 |
SUCFB209-27 |
| SUCFB209-28 |
1-3/4 |
|
SUC209-28 |
SUCFB209-28 |
| SUCFB210 |
|
50 |
190 |
74.6 |
70 |
41.3 |
21.8 |
12.7 |
38 |
13 |
118 |
102 |
53.6 |
19.0 |
51.6 |
SUC210 |
SFB210 |
2.38 |
SUCFB210 |
| SUCFB210-29 |
1-13/16 |
|
SUC210-29 |
SUCFB210-29 |
| SUCFB210-30 |
1-7/8 |
|
SUC210-30 |
SUCFB210-30 |
| SUCFB210-31 |
1-15/16 |
|
SUC210-31 |
SUCFB210-31 |
| SUCFB210-32 |
2 |
|
SUC210-32 |
SUCFB210-32 | |
