不锈钢外球面轴承SSUC200

带座轴承型号
Bearing Unit
No.
轴径
Bore Dia
外形尺寸(毫米)
Dimensions(mm)
额定动负荷
Basic
Load
Rating(KN)
额定静负荷Basic
Static
Load
Rating(KN)
重量
Weight
(kg)
带座轴承型号
Bearing Unit
No.

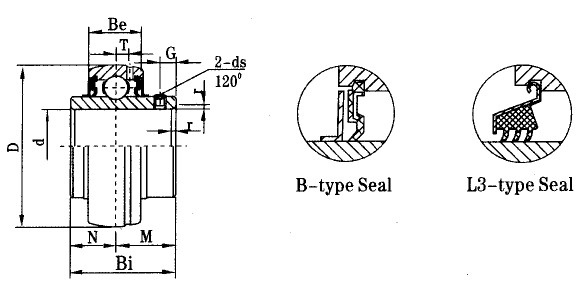

d D Bi Be r N M G ds T
in mm
SUC201S   12 40 27.4 15 1 11.5 15.9 4.5 M5×0.8 3.5 7.65 3.60 0.12 SUC201S
SUC201-8S 1/2   0.12 SUC201-8S
SUC202S   15 0.11 SUC202S
SUC202-10S 5/8   0.11 SUC202-10S
SUC203S   17 0.10 SUC203S
SUC203-11S 11/16   0.10 SUC203-11S
SUC201 12 47 31 17 1 12.7 18.3 4.7 M6×0.75 4.0 10.37 5.08 0.21 SUC201
SUC201-8 1/2 0.20 SUC201-8
SUC202 15 0.19 SUC202
SUC202-10 5/8 0.19 SUC202-10
SUC203 17 0.18 SUC203
SUC203-11 11/16 0.18 SUC203-11
SUC204 20 0.16 SUC204
SUC204-12 3/4 0.16 SUC204-12
SUC205   25 52 34.1 17 1.5 14.3 19.8 5 M6×0.75 4.2 11.31 6.00 0.19 SUC205
SUC205-14 7/8   0.22 SUC205-14
SUC205-15 15/16   0.20 SUC205-15
SUC205-16 1   0.19 SUC205-16
SUC206 30 62 38.1 19 2.0 15.9 22.2 5 M6×0.75 5.0 15.81 8.64 0.31 SUC206
SUC206-17 1-1/16 0.36 SUC206-17
SUC206-18 1-1/8 0.34 SUC206-18
SUC206-19 1-3/16 0.32 SUC206-19
SUC206-20 1-1/4 0.31 SUC206-20
SUC207   35 72 42.9 20 2.0 17.5 25.4 6 M8×1 5.7 20.83 11.68 0.46 SUC207
SUC207-20 1-1/4   0.52 SUC207-20
SUC207-21 1-5/16   0.50 SUC207-21
SUC207-22 1-3/8   0.48 SUC207-22
SUC207-23 1-7/16   0.46 SUC207-23
SUC208 40 80 49.2 21 2.0 19.0 30.2 8 M8×1 6.3 23.55 13.60 0.63 SUC208
SUC208-24 1-1/2 0.68 SUC208-24
SUC208-25 1-9/16 0.64 SUC208-25
SUC209   45 85 49.2 22 2.0 19.0 30.2 8 M8×1 6.3 26.35 15.60 0.70 SUC209
SUC209-26 1-5/8   0.78 SUC209-26
SUC209-27 1-11/16   0.74 SUC209-27
SUC209-28 1-3/4   0.70 SUC209-28
SUC210 50 90 51.6 24 2.5 19.0 32.6 10 M10×1.25 6.6 28.48 18 0.78 SUC210
SUC210-29 1-13/16 0.89 SUC210-29
SUC210-30 1-7/8 0.85 SUC210-30
SUC210-31 1-15/16 0.80 SUC210-31
SUC210-32 2 0.78 SUC210-32
SUC211   55 100 55.6 25 2.5 22.2 33.4 10 M10×1.25 7 35.28 22.4 1.07 SUC211
SUC211-32 2   1.22 SUC211-32
SUC211-33 2-1/16   1.18 SUC211-33
SUC211-34 2-1/8   1.10 SUC211-34
SUC211-35 2-3/16   1.05 SUC211-35
SUC212 60 110 65.1 27 2.5 25.4 39.7 10 M10×1.25 7.6 42.5 26.34 1.52 SUC212
SUC212-36 2-1/4 1.65 SUC212-36
SUC212-37 2-5/16 1.55 SUC212-37
SUC212-38 2-3/8 1.49 SUC212-38
SUC212-39 2-7/16 1.42 SUC212-39
SUC213   65 120 65.1 28 2.5 25.4 39.7 10 M10×1.25 8.9 46.5 30.4 1.80 SUC213
SUC213-40 2-1/2   1.88 SUC213-40
SUC213-41 2-9/16   1.80 SUC213-41
SUC214 70 125 74.6 30 2.5 30.2 44.4 12 M12×1.5 8.9 50.15 33.6 2.06 SUC214
SUC214-42 2-5/8 2.10 SUC214-42
SUC214-43 2-11/16 2.08 SUC214-43
SUC214-44 2-3/4 2.07 SUC214-44
SUC215   75 130 77.8 32 2.5 33.3 44.5 12 M12×1.5 8.9 53.55 37.6 2.19 SUC215
SUC215-45 2-13/16   2.41 SUC215-45
SUC215-46 2-7/8   2.31 SUC215-46
SUC215-47 2-15/16   2.21 SUC215-47
SUC215-48 3   2.11 SUC215-48
SUC216 80 140 82.6 33 3 33.3 49.3 14 M12×1.5 9.6 58.65 40.8 2.82 SUC216
SUC216-50 3-1/8 2.90 SUC216-50
SUC217   85 150 85.7 35 3 34.1 51.6 14 M12×1.5 10 68 48.8 3.46 SUC217
SUC217-52 3-1/4   3.56 SUC217-52
SUC218 90 160 96 37 3 39.7 56.3 15 M12×1.5 11 77.52 54.56 4.53 SUC218
SUC218-56 3-1/2 4.62
